微服务链路追踪服务端部署
这里选择的是8.8.x 版本 es 使用7 8.8版本就不用带es的镜像了，本身就支持es自由选择了
1. 先建一个命名空间，用于skywalking使用
kubectl create namespace skywalking
2. 给node 添加一个 lable
方便NodeSelector 标签选择器将应用部署到对应的node节点上
kubectl get nodes -- 查询节点 kubectl label node k8snode2 nodetype=webdesign --打标签
3. server端k8s配置文件
skywalking-oap.yaml
apiVersion: apps/v1 kind: Deployment metadata: name: oap namespace: skywalking --命名空间 spec: replicas: 1 selector: matchLabels: app: oap release: skywalking template: metadata: labels: app: oap release: skywalking spec: nodeSelector: nodetype: webdesign --节点选择器 containers: - name: oap image: apache/skywalking-oap-server:8.8.1 -- 使用的镜像 imagePullPolicy: IfNotPresent ports: - containerPort: 11800 name: grpc - containerPort: 12800 name: rest env: ---- 镜像环境变量配置 这里设置使用的存储，及es的配置 -- 镜像环境变量 用于选择数据存取方式 - name: SW_STORAGE value: elasticsearch - name: SW_STORAGE_ES_CLUSTER_NODES value: 192.168.0.91:9200 --- apiVersion: v1 kind: Service -- sevice 用于对外暴露接口 metadata: name: oap namespace: skywalking labels: service: oap spec: ports: - port: 12800 name: rest - port: 11800 name: grpc nodePort: 11800 -- 对外开放的接口 type: NodePort selector: app: oap

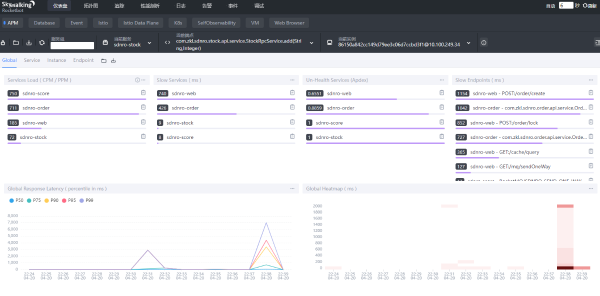

4. skywalking-ui 可视化视图部署
k8s配置文件 skywalking-ui.yaml
apiVersion: apps/v1 kind: Deployment metadata: name: ui-deployment namespace: skywalking labels: app: ui spec: replicas: 1 selector: matchLabels: app: ui template: metadata: labels: app: ui spec: nodeSelector: nodetype: webdesign containers: - name: ui image: apache/skywalking-ui:8.8.1 ports: - containerPort: 8080 name: page env: - name: SW_OAP_ADDRESS -- skywaling的服务地址 value: -- 这里使用了k8s的内置解析 --- apiVersion: v1 kind: Service -- 对外暴露访问接口 metadata: name: ui namespace: skywalking labels: service: ui spec: ports: - port: 8080 name: page nodePort: 31008 -- 对外开放的接口 type: NodePort -- 服务类型 selector: app: ui
4.es
es下载后 添加系统es账户密码
useradd es passwd es chown -R es:es /home/soft/es/
es配置 elasticesearch.yml -- 这里简单的做一个单点部署的es
cluster.name: elasticsearch node.name: node-1 network.host: 0.0.0.0 http.port: 9200 cluster.initial_master_nodes: ["node-1"]
配置jvm启动参数，主要是虚拟机内存不足
## IMPORTANT: JVM heap size ################################################################ ## ## You should always set the min and max JVM heap ## size to the same value. For example, to set ## the heap to 4 GB, set: ## ## -Xms4g ## -Xmx4g ## ## See https://www.elastic.co/guide/en/elasticsearch/reference/current/heap-size.html ## for more information ## ################################################################ # Xms represents the initial size of total heap space # Xmx represents the maximum size of total heap space -Xms512m -Xmx512m
启动es 记得先切换到es用户
su es nohup ./bin/elasticsearch > runoob.log 2>&1 &
5.启动
首先启动es 然后启动oap 最后启动ui
6。其它 skywalking oap的applycation.yml配置文件，这里可以查找自己需要的配置信息
cluster:
selector: ${SW_CLUSTER:standalone} -- 部署方式storage:
selector: ${SW_STORAGE:h2} --存储 这里可以看到默认是h2
elasticsearch: -- 这里es的选择，跟8.8之前的版本是有区别的# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
cluster:
selector: ${SW_CLUSTER:standalone}
standalone:
# Please check your ZooKeeper is 3.5+, However, it is also compatible with ZooKeeper 3.4.x. Replace the ZooKeeper 3.5+
# library the oap-libs folder with your ZooKeeper 3.4.x library.
zookeeper:
namespace: ${SW_NAMESPACE:""}
hostPort: ${SW_CLUSTER_ZK_HOST_PORT:localhost:2181}
# Retry Policy
baseSleepTimeMs: ${SW_CLUSTER_ZK_SLEEP_TIME:1000} # initial amount of time to wait between retries
maxRetries: ${SW_CLUSTER_ZK_MAX_RETRIES:3} # max number of times to retry
# Enable ACL
enableACL: ${SW_ZK_ENABLE_ACL:false} # disable ACL in default
schema: ${SW_ZK_SCHEMA:digest} # only support digest schema
expression: ${SW_ZK_EXPRESSION:skywalking:skywalking}
kubernetes:
namespace: ${SW_CLUSTER_K8S_NAMESPACE:default}
labelSelector: ${SW_CLUSTER_K8S_LABEL:app=collector,release=skywalking}
uidEnvName: ${SW_CLUSTER_K8S_UID:SKYWALKING_COLLECTOR_UID}
consul:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
# Consul cluster nodes, example: 10.0.0.1:8500,10.0.0.2:8500,10.0.0.3:8500
hostPort: ${SW_CLUSTER_CONSUL_HOST_PORT:localhost:8500}
aclToken: ${SW_CLUSTER_CONSUL_ACLTOKEN:""}
etcd:
# etcd cluster nodes, example: 10.0.0.1:2379,10.0.0.2:2379,10.0.0.3:2379
endpoints: ${SW_CLUSTER_ETCD_ENDPOINTS:localhost:2379}
namespace: ${SW_CLUSTER_ETCD_NAMESPACE:/skywalking}
serviceName: ${SW_SCLUSTER_ETCD_ERVICE_NAME:"SkyWalking_OAP_Cluster"}
authentication: ${SW_CLUSTER_ETCD_AUTHENTICATION:false}
user: ${SW_SCLUSTER_ETCD_USER:}
password: ${SW_SCLUSTER_ETCD_PASSWORD:}
nacos:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
hostPort: ${SW_CLUSTER_NACOS_HOST_PORT:localhost:8848}
# Nacos Configuration namespace
namespace: ${SW_CLUSTER_NACOS_NAMESPACE:"public"}
# Nacos auth username
username: ${SW_CLUSTER_NACOS_USERNAME:""}
password: ${SW_CLUSTER_NACOS_PASSWORD:""}
# Nacos auth accessKey
accessKey: ${SW_CLUSTER_NACOS_ACCESSKEY:""}
secretKey: ${SW_CLUSTER_NACOS_SECRETKEY:""}
core:
selector: ${SW_CORE:default}
default:
# Mixed: Receive agent data, Level 1 aggregate, Level 2 aggregate
# Receiver: Receive agent data, Level 1 aggregate
# Aggregator: Level 2 aggregate
role: ${SW_CORE_ROLE:Mixed} # Mixed/Receiver/Aggregator
restHost: ${SW_CORE_REST_HOST:0.0.0.0}
restPort: ${SW_CORE_REST_PORT:12800}
restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
restMinThreads: ${SW_CORE_REST_JETTY_MIN_THREADS:1}
restMaxThreads: ${SW_CORE_REST_JETTY_MAX_THREADS:200}
restIdleTimeOut: ${SW_CORE_REST_JETTY_IDLE_TIMEOUT:30000}
restAcceptorPriorityDelta: ${SW_CORE_REST_JETTY_DELTA:0}
restAcceptQueueSize: ${SW_CORE_REST_JETTY_QUEUE_SIZE:0}
httpMaxRequestHeaderSize: ${SW_CORE_HTTP_MAX_REQUEST_HEADER_SIZE:8192}
gRPCHost: ${SW_CORE_GRPC_HOST:0.0.0.0}
gRPCPort: ${SW_CORE_GRPC_PORT:11800}
maxConcurrentCallsPerConnection: ${SW_CORE_GRPC_MAX_CONCURRENT_CALL:0}
maxMessageSize: ${SW_CORE_GRPC_MAX_MESSAGE_SIZE:0}
gRPCThreadPoolQueueSize: ${SW_CORE_GRPC_POOL_QUEUE_SIZE:-1}
gRPCThreadPoolSize: ${SW_CORE_GRPC_THREAD_POOL_SIZE:-1}
gRPCSslEnabled: ${SW_CORE_GRPC_SSL_ENABLED:false}
gRPCSslKeyPath: ${SW_CORE_GRPC_SSL_KEY_PATH:""}
gRPCSslCertChainPath: ${SW_CORE_GRPC_SSL_CERT_CHAIN_PATH:""}
gRPCSslTrustedCAPath: ${SW_CORE_GRPC_SSL_TRUSTED_CA_PATH:""}
downsampling:
- Hour
- Day
# Set a timeout on metrics data. After the timeout has expired, the metrics data will automatically be deleted.
enableDataKeeperExecutor: ${SW_CORE_ENABLE_DATA_KEEPER_EXECUTOR:true} # Turn it off then automatically metrics data delete will be close.
dataKeeperExecutePeriod: ${SW_CORE_DATA_KEEPER_EXECUTE_PERIOD:5} # How often the data keeper executor runs periodically, unit is minute
recordDataTTL: ${SW_CORE_RECORD_DATA_TTL:3} # Unit is day
metricsDataTTL: ${SW_CORE_METRICS_DATA_TTL:7} # Unit is day
# The period of L1 aggregation flush to L2 aggregation. Unit is ms.
l1FlushPeriod: ${SW_CORE_L1_AGGREGATION_FLUSH_PERIOD:500}
# The threshold of session time. Unit is ms. Default value is 70s.
storageSessionTimeout: ${SW_CORE_STORAGE_SESSION_TIMEOUT:70000}
# Cache metrics data for 1 minute to reduce database queries, and if the OAP cluster changes within that minute,
# the metrics may not be accurate within that minute.
enableDatabaseSession: ${SW_CORE_ENABLE_DATABASE_SESSION:true}
topNReportPeriod: ${SW_CORE_TOPN_REPORT_PERIOD:10} # top_n record worker report cycle, unit is minute
# Extra model column are the column defined by in the codes, These columns of model are not required logically in aggregation or further query,
# and it will cause more load for memory, network of OAP and storage.
# But, being activated, user could see the name in the storage entities, which make users easier to use 3rd party tool, such as Kibana->ES, to query the data by themselves.
activeExtraModelColumns: ${SW_CORE_ACTIVE_EXTRA_MODEL_COLUMNS:false}
# The max length of service + instance names should be less than 200
serviceNameMaxLength: ${SW_SERVICE_NAME_MAX_LENGTH:70}
instanceNameMaxLength: ${SW_INSTANCE_NAME_MAX_LENGTH:70}
# The max length of service + endpoint names should be less than 240
endpointNameMaxLength: ${SW_ENDPOINT_NAME_MAX_LENGTH:150}
# Define the set of span tag keys, which should be searchable through the GraphQL.
searchableTracesTags: ${SW_SEARCHABLE_TAG_KEYS:http.method,status_code,db.type,db.instance,mq.queue,mq.topic,mq.broker}
# Define the set of log tag keys, which should be searchable through the GraphQL.
searchableLogsTags: ${SW_SEARCHABLE_LOGS_TAG_KEYS:level}
# Define the set of alarm tag keys, which should be searchable through the GraphQL.
searchableAlarmTags: ${SW_SEARCHABLE_ALARM_TAG_KEYS:level}
# The number of threads used to prepare metrics data to the storage.
prepareThreads: ${SW_CORE_PREPARE_THREADS:2}
# Turn it on then automatically grouping endpoint by the given OpenAPI definitions.
enableEndpointNameGroupingByOpenapi: ${SW_CORE_ENABLE_ENDPOINT_NAME_GROUPING_BY_OPAENAPI:true}
storage:
selector: ${SW_STORAGE:h2}
elasticsearch:
namespace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
connectTimeout: ${SW_STORAGE_ES_CONNECT_TIMEOUT:500}
socketTimeout: ${SW_STORAGE_ES_SOCKET_TIMEOUT:30000}
numHttpClientThread: ${SW_STORAGE_ES_NUM_HTTP_CLIENT_THREAD:0}
user: ${SW_ES_USER:""}
password: ${SW_ES_PASSWORD:""}
trustStorePath: ${SW_STORAGE_ES_SSL_JKS_PATH:""}
trustStorePass: ${SW_STORAGE_ES_SSL_JKS_PASS:""}
secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:1} # Shard number of new indexes
indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:1} # Replicas number of new indexes
# Super data set has been defined in the codes, such as trace segments.The following 3 config would be improve es performance when storage super size data in es.
superDatasetDayStep: ${SW_SUPERDATASET_STORAGE_DAY_STEP:-1} # Represent the number of days in the super size dataset record index, the default value is the same as dayStep when the value is less than 0
superDatasetIndexShardsFactor: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_SHARDS_FACTOR:5} # This factor provides more shards for the super data set, shards number = indexShardsNumber * superDatasetIndexShardsFactor. Also, this factor effects Zipkin and Jaeger traces.
superDatasetIndexReplicasNumber: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_REPLICAS_NUMBER:0} # Represent the replicas number in the super size dataset record index, the default value is 0.
indexTemplateOrder: ${SW_STORAGE_ES_INDEX_TEMPLATE_ORDER:0} # the order of index template
bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:5000} # Execute the async bulk record data every ${SW_STORAGE_ES_BULK_ACTIONS} requests
# flush the bulk every 10 seconds whatever the number of requests
# INT(flushInterval * 2/3) would be used for index refresh period.
flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:15}
concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
oapAnalyzer: ${SW_STORAGE_ES_OAP_ANALYZER:"{\"analyzer\":{\"oap_analyzer\":{\"type\":\"stop\"}}}"} # the oap analyzer.
oapLogAnalyzer: ${SW_STORAGE_ES_OAP_LOG_ANALYZER:"{\"analyzer\":{\"oap_log_analyzer\":{\"type\":\"standard\"}}}"} # the oap log analyzer. It could be customized by the ES analyzer configuration to support more language log formats, such as Chinese log, Japanese log and etc.
advanced: ${SW_STORAGE_ES_ADVANCED:""}
h2:
driver: ${SW_STORAGE_H2_DRIVER:org.h2.jdbcx.JdbcDataSource}
url: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db;DB_CLOSE_DELAY=-1}
user: ${SW_STORAGE_H2_USER:sa}
metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:100}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:1}
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest?rewriteBatchedStatements=true"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root@1234}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
tidb:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:4000/tidbswtest?rewriteBatchedStatements=true"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:""}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
dataSource.useAffectedRows: ${SW_DATA_SOURCE_USE_AFFECTED_ROWS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
influxdb:
# InfluxDB configuration
url: ${SW_STORAGE_INFLUXDB_URL:http://localhost:8086}
user: ${SW_STORAGE_INFLUXDB_USER:root}
password: ${SW_STORAGE_INFLUXDB_PASSWORD:}
database: ${SW_STORAGE_INFLUXDB_DATABASE:skywalking}
actions: ${SW_STORAGE_INFLUXDB_ACTIONS:1000} # the number of actions to collect
duration: ${SW_STORAGE_INFLUXDB_DURATION:1000} # the time to wait at most (milliseconds)
batchEnabled: ${SW_STORAGE_INFLUXDB_BATCH_ENABLED:true}
fetchTaskLogMaxSize: ${SW_STORAGE_INFLUXDB_FETCH_TASK_LOG_MAX_SIZE:5000} # the max number of fetch task log in a request
connectionResponseFormat: ${SW_STORAGE_INFLUXDB_CONNECTION_RESPONSE_FORMAT:MSGPACK} # the response format of connection to influxDB, cannot be anything but MSGPACK or JSON.
postgresql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:postgresql://localhost:5432/skywalking"}
dataSource.user: ${SW_DATA_SOURCE_USER:postgres}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:123456}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
zipkin-elasticsearch:
namespace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
trustStorePath: ${SW_STORAGE_ES_SSL_JKS_PATH:""}
trustStorePass: ${SW_STORAGE_ES_SSL_JKS_PASS:""}
dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:1} # Shard number of new indexes
indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:1} # Replicas number of new indexes
# Super data set has been defined in the codes, such as trace segments.The following 3 config would be improve es performance when storage super size data in es.
superDatasetDayStep: ${SW_SUPERDATASET_STORAGE_DAY_STEP:-1} # Represent the number of days in the super size dataset record index, the default value is the same as dayStep when the value is less than 0
superDatasetIndexShardsFactor: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_SHARDS_FACTOR:5} # This factor provides more shards for the super data set, shards number = indexShardsNumber * superDatasetIndexShardsFactor. Also, this factor effects Zipkin and Jaeger traces.
superDatasetIndexReplicasNumber: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_REPLICAS_NUMBER:0} # Represent the replicas number in the super size dataset record index, the default value is 0.
user: ${SW_ES_USER:""}
password: ${SW_ES_PASSWORD:""}
secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:5000} # Execute the async bulk record data every ${SW_STORAGE_ES_BULK_ACTIONS} requests
# flush the bulk every 10 seconds whatever the number of requests
# INT(flushInterval * 2/3) would be used for index refresh period.
flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:15}
concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
oapAnalyzer: ${SW_STORAGE_ES_OAP_ANALYZER:"{\"analyzer\":{\"oap_analyzer\":{\"type\":\"stop\"}}}"} # the oap analyzer.
oapLogAnalyzer: ${SW_STORAGE_ES_OAP_LOG_ANALYZER:"{\"analyzer\":{\"oap_log_analyzer\":{\"type\":\"standard\"}}}"} # the oap log analyzer. It could be customized by the ES analyzer configuration to support more language log formats, such as Chinese log, Japanese log and etc.
advanced: ${SW_STORAGE_ES_ADVANCED:""}
agent-analyzer:
selector: ${SW_AGENT_ANALYZER:default}
default:
# The default sampling rate and the default trace latency time configured by the 'traceSamplingPolicySettingsFile' file.
traceSamplingPolicySettingsFile: ${SW_TRACE_SAMPLING_POLICY_SETTINGS_FILE:trace-sampling-policy-settings.yml}
slowDBAccessThreshold: ${SW_SLOW_DB_THRESHOLD:default:200,mongodb:100} # The slow database access thresholds. Unit ms.
forceSampleErrorSegment: ${SW_FORCE_SAMPLE_ERROR_SEGMENT:true} # When sampling mechanism active, this config can open(true) force save some error segment. true is default.
segmentStatusAnalysisStrategy: ${SW_SEGMENT_STATUS_ANALYSIS_STRATEGY:FROM_SPAN_STATUS} # Determine the final segment status from the status of spans. Available values are `FROM_SPAN_STATUS` , `FROM_ENTRY_SPAN` and `FROM_FIRST_SPAN`. `FROM_SPAN_STATUS` represents the segment status would be error if any span is in error status. `FROM_ENTRY_SPAN` means the segment status would be determined by the status of entry spans only. `FROM_FIRST_SPAN` means the segment status would be determined by the status of the first span only.
# Nginx and Envoy agents can't get the real remote address.
# Exit spans with the component in the list would not generate the client-side instance relation metrics.
noUpstreamRealAddressAgents: ${SW_NO_UPSTREAM_REAL_ADDRESS:6000,9000}
meterAnalyzerActiveFiles: ${SW_METER_ANALYZER_ACTIVE_FILES:} # Which files could be meter analyzed, files split by ","
log-analyzer:
selector: ${SW_LOG_ANALYZER:default}
default:
lalFiles: ${SW_LOG_LAL_FILES:default}
malFiles: ${SW_LOG_MAL_FILES:""}
event-analyzer:
selector: ${SW_EVENT_ANALYZER:default}
default:
receiver-sharing-server:
selector: ${SW_RECEIVER_SHARING_SERVER:default}
default:
# For Jetty server
restHost: ${SW_RECEIVER_SHARING_REST_HOST:0.0.0.0}
restPort: ${SW_RECEIVER_SHARING_REST_PORT:0}
restContextPath: ${SW_RECEIVER_SHARING_REST_CONTEXT_PATH:/}
restMinThreads: ${SW_RECEIVER_SHARING_JETTY_MIN_THREADS:1}
restMaxThreads: ${SW_RECEIVER_SHARING_JETTY_MAX_THREADS:200}
restIdleTimeOut: ${SW_RECEIVER_SHARING_JETTY_IDLE_TIMEOUT:30000}
restAcceptorPriorityDelta: ${SW_RECEIVER_SHARING_JETTY_DELTA:0}
restAcceptQueueSize: ${SW_RECEIVER_SHARING_JETTY_QUEUE_SIZE:0}
httpMaxRequestHeaderSize: ${SW_RECEIVER_SHARING_HTTP_MAX_REQUEST_HEADER_SIZE:8192}
# For gRPC server
gRPCHost: ${SW_RECEIVER_GRPC_HOST:0.0.0.0}
gRPCPort: ${SW_RECEIVER_GRPC_PORT:0}
maxConcurrentCallsPerConnection: ${SW_RECEIVER_GRPC_MAX_CONCURRENT_CALL:0}
maxMessageSize: ${SW_RECEIVER_GRPC_MAX_MESSAGE_SIZE:0}
gRPCThreadPoolQueueSize: ${SW_RECEIVER_GRPC_POOL_QUEUE_SIZE:0}
gRPCThreadPoolSize: ${SW_RECEIVER_GRPC_THREAD_POOL_SIZE:0}
gRPCSslEnabled: ${SW_RECEIVER_GRPC_SSL_ENABLED:false}
gRPCSslKeyPath: ${SW_RECEIVER_GRPC_SSL_KEY_PATH:""}
gRPCSslCertChainPath: ${SW_RECEIVER_GRPC_SSL_CERT_CHAIN_PATH:""}
gRPCSslTrustedCAsPath: ${SW_RECEIVER_GRPC_SSL_TRUSTED_CAS_PATH:""}
authentication: ${SW_AUTHENTICATION:""}
receiver-register:
selector: ${SW_RECEIVER_REGISTER:default}
default:
receiver-trace:
selector: ${SW_RECEIVER_TRACE:default}
default:
receiver-jvm:
selector: ${SW_RECEIVER_JVM:default}
default:
receiver-clr:
selector: ${SW_RECEIVER_CLR:default}
default:
receiver-profile:
selector: ${SW_RECEIVER_PROFILE:default}
default:
receiver-zabbix:
selector: ${SW_RECEIVER_ZABBIX:-}
default:
port: ${SW_RECEIVER_ZABBIX_PORT:10051}
host: ${SW_RECEIVER_ZABBIX_HOST:0.0.0.0}
activeFiles: ${SW_RECEIVER_ZABBIX_ACTIVE_FILES:agent}
service-mesh:
selector: ${SW_SERVICE_MESH:default}
default:
envoy-metric:
selector: ${SW_ENVOY_METRIC:default}
default:
acceptMetricsService: ${SW_ENVOY_METRIC_SERVICE:true}
alsHTTPAnalysis: ${SW_ENVOY_METRIC_ALS_HTTP_ANALYSIS:""}
alsTCPAnalysis: ${SW_ENVOY_METRIC_ALS_TCP_ANALYSIS:""}
# `k8sServiceNameRule` allows you to customize the service name in ALS via Kubernetes metadata,
# the available variables are `pod`, `service`, f.e., you can use `${service.metadata.name}-${pod.metadata.labels.version}`
# to append the version number to the service name.
# Be careful, when using environment variables to pass this configuration, use single quotes(`''`) to avoid it being evaluated by the shell.
k8sServiceNameRule: ${K8S_SERVICE_NAME_RULE:"${pod.metadata.labels.(service.istio.io/canonical-name)}"}
prometheus-fetcher:
selector: ${SW_PROMETHEUS_FETCHER:-}
default:
enabledRules: ${SW_PROMETHEUS_FETCHER_ENABLED_RULES:"self"}
maxConvertWorker: ${SW_PROMETHEUS_FETCHER_NUM_CONVERT_WORKER:-1}
kafka-fetcher:
selector: ${SW_KAFKA_FETCHER:-}
default:
bootstrapServers: ${SW_KAFKA_FETCHER_SERVERS:localhost:9092}
namespace: ${SW_NAMESPACE:""}
partitions: ${SW_KAFKA_FETCHER_PARTITIONS:3}
replicationFactor: ${SW_KAFKA_FETCHER_PARTITIONS_FACTOR:2}
enableNativeProtoLog: ${SW_KAFKA_FETCHER_ENABLE_NATIVE_PROTO_LOG:false}
enableNativeJsonLog: ${SW_KAFKA_FETCHER_ENABLE_NATIVE_JSON_LOG:false}
isSharding: ${SW_KAFKA_FETCHER_IS_SHARDING:false}
consumePartitions: ${SW_KAFKA_FETCHER_CONSUME_PARTITIONS:""}
kafkaHandlerThreadPoolSize: ${SW_KAFKA_HANDLER_THREAD_POOL_SIZE:-1}
kafkaHandlerThreadPoolQueueSize: ${SW_KAFKA_HANDLER_THREAD_POOL_QUEUE_SIZE:-1}
receiver-meter:
selector: ${SW_RECEIVER_METER:default}
default:
receiver-otel:
selector: ${SW_OTEL_RECEIVER:-}
default:
enabledHandlers: ${SW_OTEL_RECEIVER_ENABLED_HANDLERS:"oc"}
enabledOcRules: ${SW_OTEL_RECEIVER_ENABLED_OC_RULES:"istio-controlplane"}
receiver_zipkin:
selector: ${SW_RECEIVER_ZIPKIN:-}
default:
host: ${SW_RECEIVER_ZIPKIN_HOST:0.0.0.0}
port: ${SW_RECEIVER_ZIPKIN_PORT:9411}
contextPath: ${SW_RECEIVER_ZIPKIN_CONTEXT_PATH:/}
jettyMinThreads: ${SW_RECEIVER_ZIPKIN_JETTY_MIN_THREADS:1}
jettyMaxThreads: ${SW_RECEIVER_ZIPKIN_JETTY_MAX_THREADS:200}
jettyIdleTimeOut: ${SW_RECEIVER_ZIPKIN_JETTY_IDLE_TIMEOUT:30000}
jettyAcceptorPriorityDelta: ${SW_RECEIVER_ZIPKIN_JETTY_DELTA:0}
jettyAcceptQueueSize: ${SW_RECEIVER_ZIPKIN_QUEUE_SIZE:0}
instanceNameRule: ${SW_RECEIVER_ZIPKIN_INSTANCE_NAME_RULE:[spring.instance_id,node_id]}
receiver_jaeger:
selector: ${SW_RECEIVER_JAEGER:-}
default:
gRPCHost: ${SW_RECEIVER_JAEGER_HOST:0.0.0.0}
gRPCPort: ${SW_RECEIVER_JAEGER_PORT:14250}
receiver-browser:
selector: ${SW_RECEIVER_BROWSER:default}
default:
# The sample rate precision is 1/10000. 10000 means 100% sample in default.
sampleRate: ${SW_RECEIVER_BROWSER_SAMPLE_RATE:10000}
receiver-log:
selector: ${SW_RECEIVER_LOG:default}
default:
query:
selector: ${SW_QUERY:graphql}
graphql:
path: ${SW_QUERY_GRAPHQL_PATH:/graphql}
# Enable the log testing API to test the LAL.
# NOTE: This API evaluates untrusted code on the OAP server.
# A malicious script can do significant damage (steal keys and secrets, remove files and directories, install malware, etc).
# As such, please enable this API only when you completely trust your users.
enableLogTestTool: ${SW_QUERY_GRAPHQL_ENABLE_LOG_TEST_TOOL:false}
alarm:
selector: ${SW_ALARM:default}
default:
telemetry:
selector: ${SW_TELEMETRY:none}
none:
prometheus:
host: ${SW_TELEMETRY_PROMETHEUS_HOST:0.0.0.0}
port: ${SW_TELEMETRY_PROMETHEUS_PORT:1234}
sslEnabled: ${SW_TELEMETRY_PROMETHEUS_SSL_ENABLED:false}
sslKeyPath: ${SW_TELEMETRY_PROMETHEUS_SSL_KEY_PATH:""}
sslCertChainPath: ${SW_TELEMETRY_PROMETHEUS_SSL_CERT_CHAIN_PATH:""}
configuration:
selector: ${SW_CONFIGURATION:none}
none:
grpc:
host: ${SW_DCS_SERVER_HOST:""}
port: ${SW_DCS_SERVER_PORT:80}
clusterName: ${SW_DCS_CLUSTER_NAME:SkyWalking}
period: ${SW_DCS_PERIOD:20}
apollo:
apolloMeta: ${SW_CONFIG_APOLLO:http://localhost:8080}
apolloCluster: ${SW_CONFIG_APOLLO_CLUSTER:default}
apolloEnv: ${SW_CONFIG_APOLLO_ENV:""}
appId: ${SW_CONFIG_APOLLO_APP_ID:skywalking}
period: ${SW_CONFIG_APOLLO_PERIOD:60}
zookeeper:
period: ${SW_CONFIG_ZK_PERIOD:60} # Unit seconds, sync period. Default fetch every 60 seconds.
namespace: ${SW_CONFIG_ZK_NAMESPACE:/default}
hostPort: ${SW_CONFIG_ZK_HOST_PORT:localhost:2181}
# Retry Policy
baseSleepTimeMs: ${SW_CONFIG_ZK_BASE_SLEEP_TIME_MS:1000} # initial amount of time to wait between retries
maxRetries: ${SW_CONFIG_ZK_MAX_RETRIES:3} # max number of times to retry
etcd:
period: ${SW_CONFIG_ETCD_PERIOD:60} # Unit seconds, sync period. Default fetch every 60 seconds.
endpoints: ${SW_CONFIG_ETCD_ENDPOINTS:http://localhost:2379}
namespace: ${SW_CONFIG_ETCD_NAMESPACE:/skywalking}
authentication: ${SW_CONFIG_ETCD_AUTHENTICATION:false}
user: ${SW_CONFIG_ETCD_USER:}
password: ${SW_CONFIG_ETCD_password:}
consul:
# Consul host and ports, separated by comma, e.g. 1.2.3.4:8500,2.3.4.5:8500
hostAndPorts: ${SW_CONFIG_CONSUL_HOST_AND_PORTS:1.2.3.4:8500}
# Sync period in seconds. Defaults to 60 seconds.
period: ${SW_CONFIG_CONSUL_PERIOD:60}
# Consul aclToken
aclToken: ${SW_CONFIG_CONSUL_ACL_TOKEN:""}
k8s-configmap:
period: ${SW_CONFIG_CONFIGMAP_PERIOD:60}
namespace: ${SW_CLUSTER_K8S_NAMESPACE:default}
labelSelector: ${SW_CLUSTER_K8S_LABEL:app=collector,release=skywalking}
nacos:
# Nacos Server Host
serverAddr: ${SW_CONFIG_NACOS_SERVER_ADDR:127.0.0.1}
# Nacos Server Port
port: ${SW_CONFIG_NACOS_SERVER_PORT:8848}
# Nacos Configuration Group
group: ${SW_CONFIG_NACOS_SERVER_GROUP:skywalking}
# Nacos Configuration namespace
namespace: ${SW_CONFIG_NACOS_SERVER_NAMESPACE:}
# Unit seconds, sync period. Default fetch every 60 seconds.
period: ${SW_CONFIG_NACOS_PERIOD:60}
# Nacos auth username
username: ${SW_CONFIG_NACOS_USERNAME:""}
password: ${SW_CONFIG_NACOS_PASSWORD:""}
# Nacos auth accessKey
accessKey: ${SW_CONFIG_NACOS_ACCESSKEY:""}
secretKey: ${SW_CONFIG_NACOS_SECRETKEY:""}
exporter:
selector: ${SW_EXPORTER:-}
grpc:
targetHost: ${SW_EXPORTER_GRPC_HOST:127.0.0.1}
targetPort: ${SW_EXPORTER_GRPC_PORT:9870}
health-checker:
selector: ${SW_HEALTH_CHECKER:-}
default:
checkIntervalSeconds: ${SW_HEALTH_CHECKER_INTERVAL_SECONDS:5}
configuration-discovery:
selector: ${SW_CONFIGURATION_DISCOVERY:default}
default:
disableMessageDigest: ${SW_DISABLE_MESSAGE_DIGEST:false}
receiver-event:
selector: ${SW_RECEIVER_EVENT:default}
default:乐享：知识积累，快乐无限。
